DEV-USB0001 - CH32H417 USB3.0 Development Board
Overview
CH32H417 is an interconnected general-purpose microcontroller designed based on QingKe RISC-V5F and RISC-V3F dual cores. CH32H417 integrates USB 3.2 Gen1 controller and transceiver, 100M Ethernet MAC and PHY, SerDes high-speed isolated transceiver, Type-C/PD controller and PHY, provides SD/EMMC controller, 500MBytes universal high-speed interface UHSIF, DVP, SWPMI, PIOC, FMC, DFSDM, LTDC, GPHA, DMA Controller, multi-timers, 8 UARTs, I3C, 4 groups of I2C, 2 groups of QSPI, 4 groups of SPI, 2 groups of I2S, 3 groups of CAN and other peripheral resources.
Built-in 5M sampling rate dual 12-bit ADC unit, 20M sampling rate 10-bit high-speed HSADC unit, 16-channel touch-key, dual DAC unit, 3 groups of OPA, voltage CMP and other analog resources, support 10M/100M Ethernet communication.
It supports USB 2.0 and USB 3.0, USB Host and USB Device, Type-C and PDUSB fast charging, SerDes high-speed isolation and remote transmission, and dual-core division of labor to improve the efficiency of network protocol processing and communication response speed.

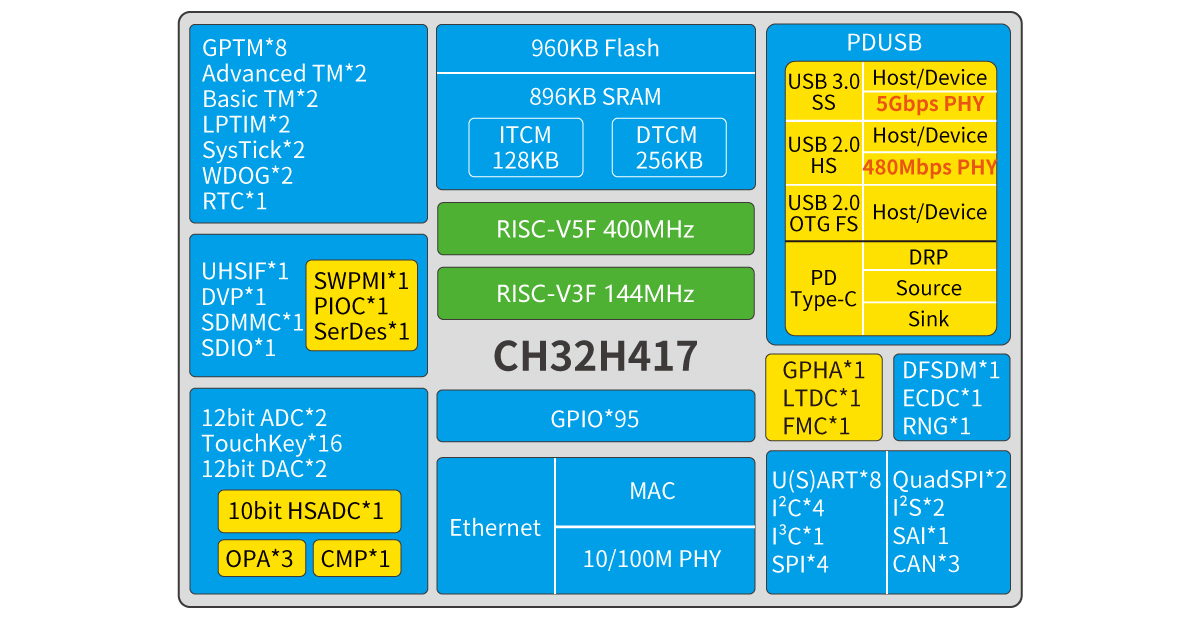

Chip Specifications
- Dual-core architecture: Qingke RISC-V5F and RISC-V3F
- V5F maximum frequency: 400MHz, V3F maximum frequency: 144MHz
- 896KB SRAM, 960KB Flash
- System supply voltage: rated 3.3V
- Conventional GPIO supply voltage: rated 3.3V, supports 1.8V
- High-speed GPIO supply voltage: selectable 1.2/1.8/2.5/3.3V
- 2 groups of 16-channel universal DMA controllers
- 2 groups of 12-bit analog-to-digital converters (ADC), sampling rate up to 5Msps, supporting dual ADC conversion mode
- 1 group of 10-bit high-speed analog-to-digital converter (HSADC), sampling rate up to 20Msps
- 16-channel TouchKey detection
- 2 groups of 12-bit digital-to-analog converters (DAC)
- 32-bit wide 125MHz universal high-speed interface (UHSIF)
- 144MHz digital image interface (DVP)
- 200MHz dual-edge SD/EMMC controller (SDMMC)
- SDIO host/slave interface: supports SD/SDIO/MMC
- Single-wire protocol master interface (SWPMI)
- Programmable protocol I/O controller (PIOC)
- Ethernet controller MAC and 10M/100M PHY
- 5Gbps ultra-high-speed USB 3.0 controller and PHY
- 480Mbps high-speed USB 2.0 controller and PHY
- Full-speed USB 2.0 controller and PHY
- Long-distance SerDes controller and PHY, supporting kilovolt-level high-voltage signal isolation transmission
- USB PD and Type-C controller and PHY
- 1 group of analog voltage comparators (CMP)
- 3 groups of operational amplifiers (OPA/PGA)/voltage comparators
- 2 16-bit advanced timers, 4 16-bit and 4 32-bit general-purpose timers
- 2 16-bit basic timers, 2 16-bit low-power timers
- 2 watchdog timers: independent and window types, 2 32-bit system timebase timers
- 8 USART ports, 4 I2C interfaces, 1 I3C interface
- 4 SPI interfaces, 2 QuadSPI interfaces, 3 CAN interfaces (2.0B active)
- Digital filter for ΣΔ modulators (DFSDM)
- Serial audio interface (SAI)
- DCT-TFT display controller (LTDC)
- Graphics processing hardware accelerator (GPHA)
- Flexible memory controller (FMC)
- 95 I/Os, mapped to 16 external interrupts
- ECDC encryption module
- Supports single-wire (default) and dual-wire debugging modes
- Package types: QFN128, QFN88, QFN68, QFN60X6

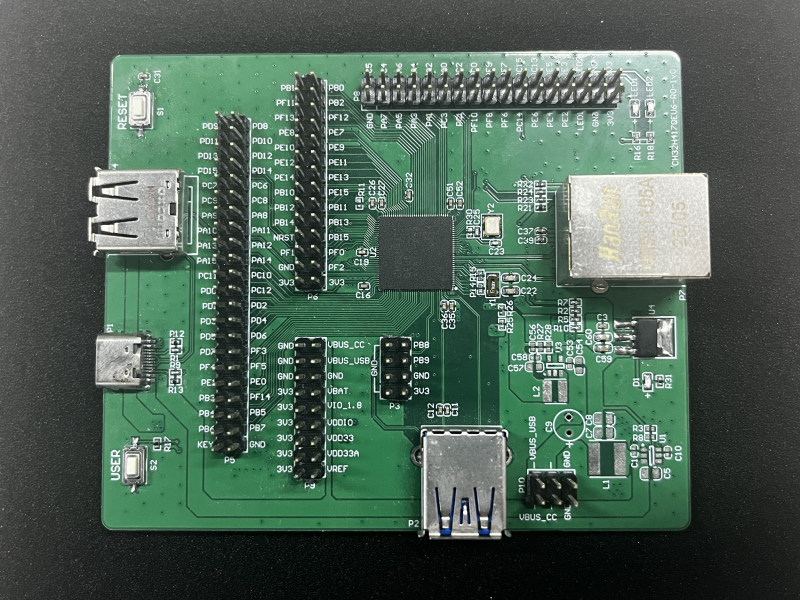

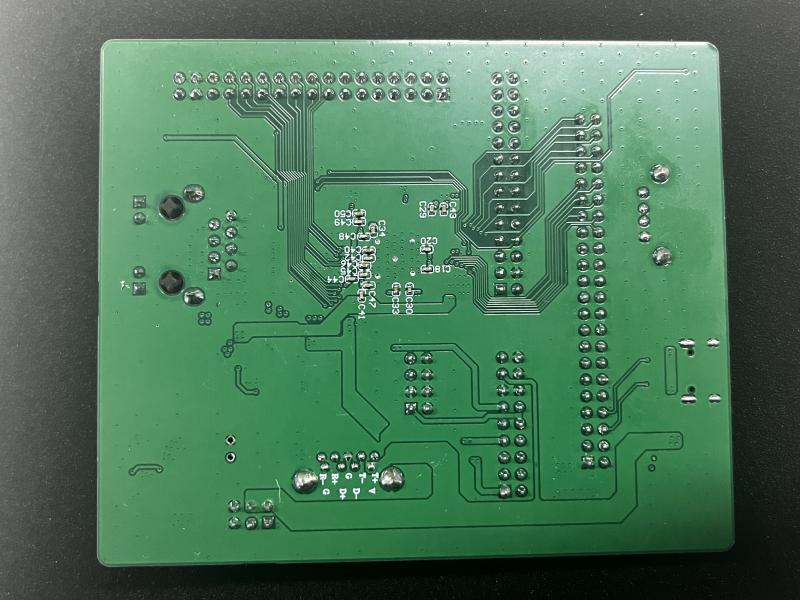

Board Features
- Main Chip CH32H417QEU6 - Dual RISC-V core, Up to 400MHz
- USB3.0 SuperSpeed Type-A Connector x 1
- USB3.0 Bandwidth Up to 450MBps
- USB2.0 High Speed Type-A Connector x 1
- USB2.0 High Speed Type-C Connector x 1
- 100Mbps Ethernet Inteface x 1
- SWD Interface for Debug & Download FW
- Universal high-speed interface UHSIF Available
