Maple ESP32C5 Bet Mini Breakout

• Overview
• Features
• Specifications
• User Guide
  • Examples
• Buy it Now
• Resources
  • Documents
  • Codes
• Tutorial
• Open Source Project

Overview

Espressif’s ESP32-C5 is the industry’s first RISC-V MCU that supports 2.4 and 5 GHz dual-band Wi-Fi 6, along with Bluetooth 5 (LE) and IEEE 802.15.4 (Zigbee, Thread) connectivity. It is designed for applications that require high-efficiency wireless transmission. ESP32-C5 has a 32-bit single-core processor which can clock up to 240 MHz in speed. It has a 384 KB on-chip SRAM along with external PSRAM support, 320 KB of ROM. It has up to 29 programmable GPIOs, supporting all the commonly used peripherals and the best-in-class security features. It support for SPI, UART, I2C, I2S, RMT, TWAI, PWM, SDIO, Motor Control PWM. It also packs a 12-bit ADC and a temperature sensor.

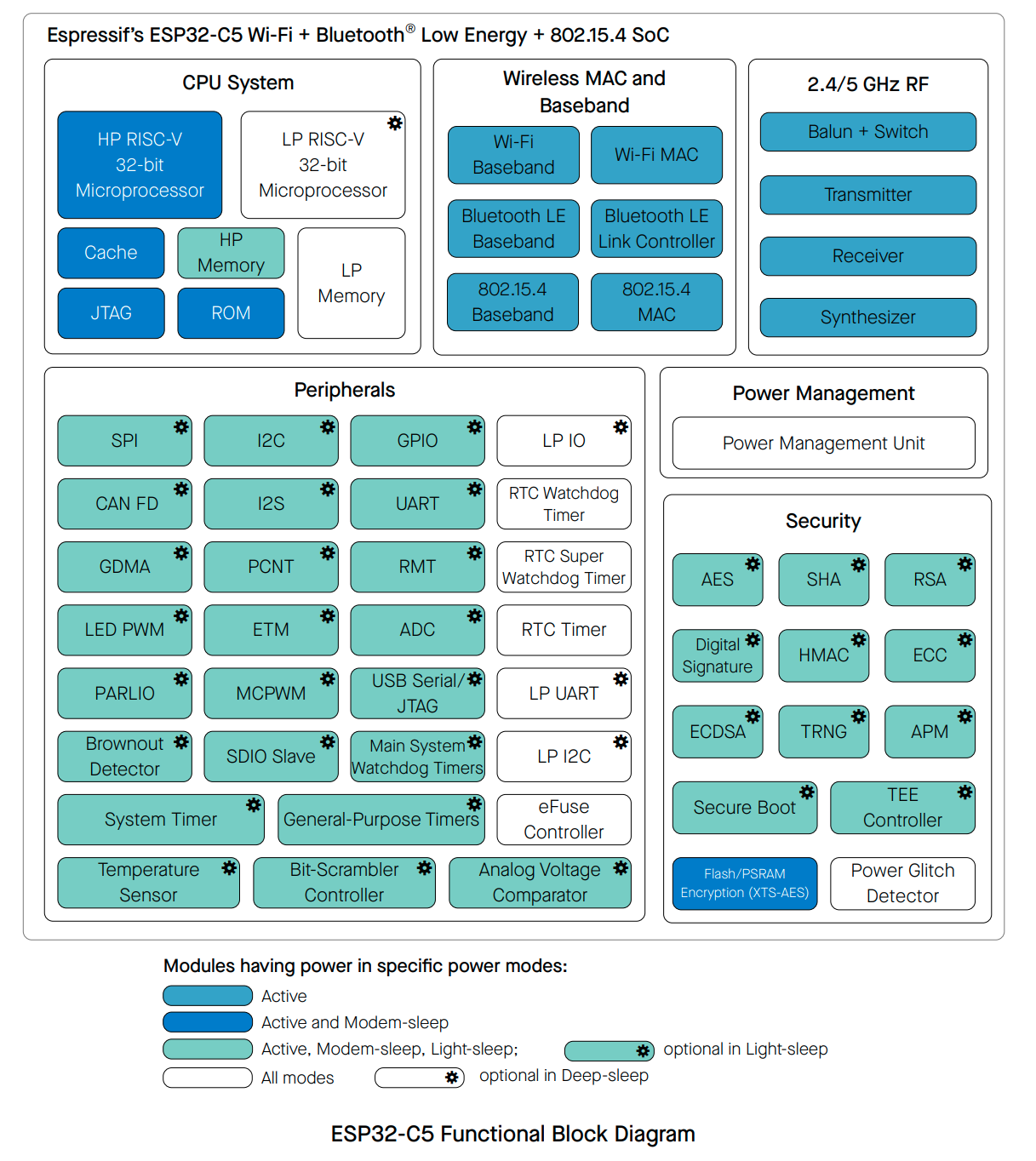

maple_esp32c6_alef_mini_breakout_bottom

Features

• ESP32-C5 embedded, 32-bit RISC-V,single-core microprocessor, up to 240 MHz
• A low-power (LP) 32-bit RISC-V processor, up to 20 MHz
• ROM: 320 KB, HP SRAM: 384 KB, LP SRAM: 16 KB
• Support 2.4 & 5 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 protocol
• Support for SPI, UART, I2C, I2S, RMT, TWAI, PWM, SDIO, Motor Control PWM
• A 12-bit ADC and a temperature sensor.

Specifications

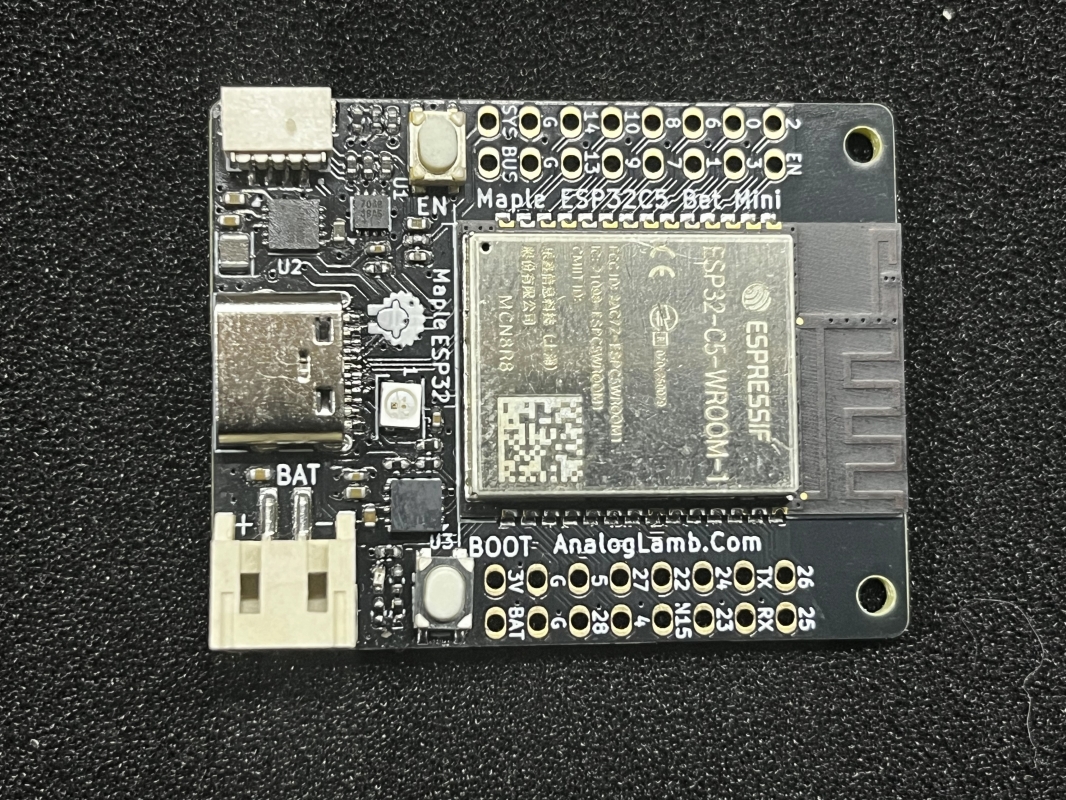

maple_esp32c6_bet_mini_breakout_top

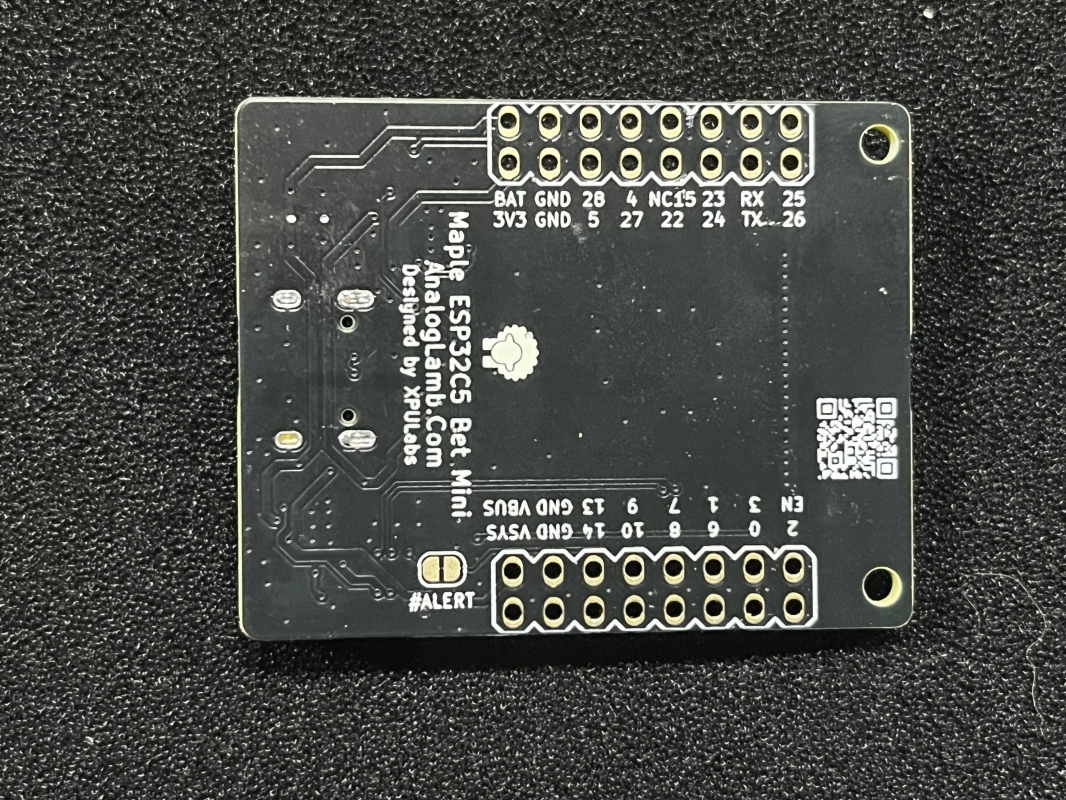

maple_esp32c6_alef_mini_breakout_bottom

• ESP32-C5-WROOM-1 Module with 8MB Flash & 8MB PSRAM
• 2.4G & 5GHz Dual-Band Support
• DC-DC: Output 3.3V@Max 1A
• MAX17048 for Battery Fuel Gauge
• Battery Charger with Power Path
• Buttons for EN & BOOT
• Headers for All Avaiable PINs
• USB Type-C connector as Power Supply & Debug Interface
• Qwiic Connector for I2C
• Battery Connector for 3.7V Li-Ion Battery
• Dimension: 40 x 33 x 5 mm

User Guide

Examples

TBD

Buy it Now

AnalogLamb.Com

Resources

Documents

ESP32-C5-WROOM Datasheet

Schematic

Codes

Github - ESP-IDF
Github - ESP-RS

Tutorial

TBD

Open Source Project

TBD
