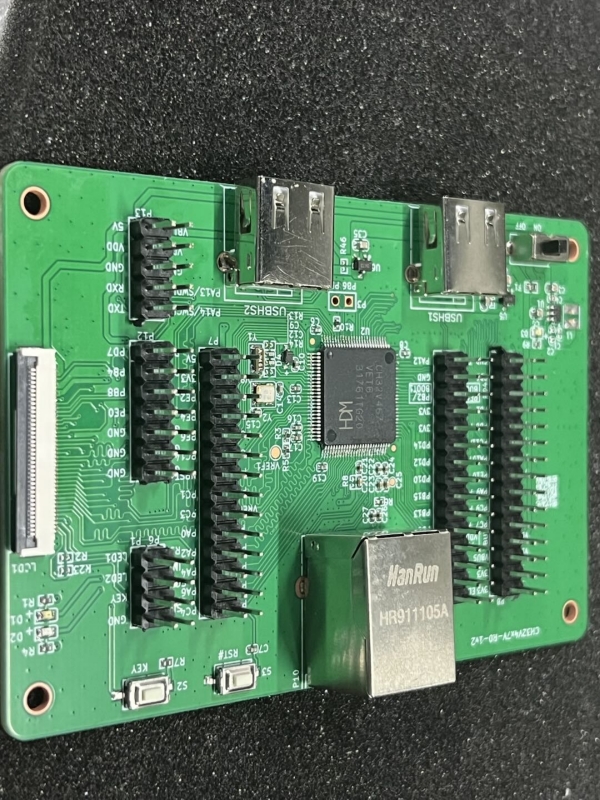

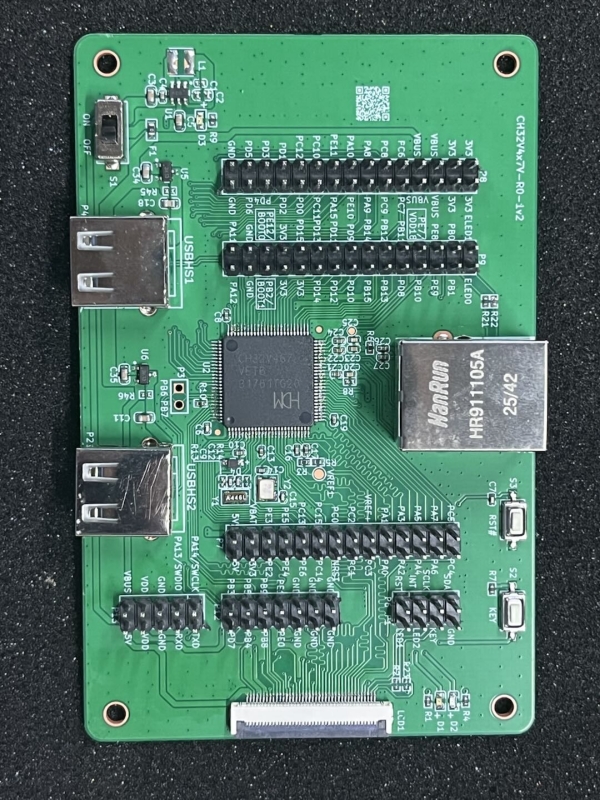

WCH CH32V407 & CH32V467 EVB Board - RISC-V Vector Extension & Dual USB2.0 HS MCU Board
Overview
CH32V407 is an industrial-grade interconnected microcontroller based on the QingKe RISC-V core. It supports zero-wait operation at a 200MHz clock speed and the V-vector instruction set, making it suitable for applications such as accelerated computing and parallel processing. The CH32V407 integrates 2 sets of USB2.0 high-speed PHY transceivers (480Mbps), an Ethernet MAC controller, and 10/100Mbps physical layer transceivers; It features integrated analog resources such as dual ADCs, dual DACs, and OPAs; it also provides a wealth of peripheral resources, including 2 sets of DMA controllers (totaling 24 channels), SDIO, DVP interfaces, RNG,ARGB, LTDC, FSMC, multiple timer units, 10 USARTs, I2C interfaces, I3Cs, 3 SPIs, 2 I2Ss, and CAN interfaces.
The CH32V467 adds 4MB or 8MB of on-chip extended PSRAM memory to the CH32V407 and supports DMA.
Chip Features
- Qingke 32-bit RISC-V 3V core processor, maximum system main frequency up to 200 MHz
- Supports V vector instruction set and parallel computing
- 200 KB SRAM, 512 KB Flash
- 8 MB extended PSRAM (CH32V467 only)
- Operating voltage: 2.9~3.6 V
- Multiple low-power modes: Sleep / Stop / Standby
- Power-on/power-down reset, programmable voltage monitor
- 2 groups of general-purpose DMA with 24 channels in total
- 1 set of operational amplifier comparator
- 1 Random Number Generator (RNG)
- 2 groups of 12-bit DAC converters
- 2 groups of 12-bit ADC converters
- 6 groups of timers
- 2 sets of USB2.0 high-speed host/device interfaces (480 Mbps with built-in PHY)
- 10 USART interfaces
- 1 CAN interface (2.0B active mode)
- SDIO interface (compatible with MMC, SD/SDIO cards and CE-ATA standards)
- FSMC memory interface
- 150 MHz DVP digital video port interface
- LCD-TFT display controller (LTDC)
- Addressable RGB (ARGB)
- 1 I2C interface, 1 I3C interface, 3 SPI interfaces, 2 I2S interfaces
- Built-in 100 Mbps Ethernet MAC and integrated 10M/100M PHY
- 77 I/O pins, configurable to map to 16 external interrupt channels
- CRC calculation unit, 96-bit unique chip ID
- Single-wire or dual-wire debug mode
- Package options: LQFP64, QFN68, LQFP100
Board Specifications
- Main Chip CH32V407VET6 or CH32V467VET6 with 8MB PSRAM
- RISC-V core with V Extension, Up to 200MHz
- USB2.0 High Speed Type-A Connector x 2
- 100Mbps Ethernet Inteface x 1
- RGB LCD Connector x1
- SWD Interface for Debug & Download FW
- Buttons & LEDs on Board
- All GPIOs are avaible
- Dimensions: 11cm × 7cm

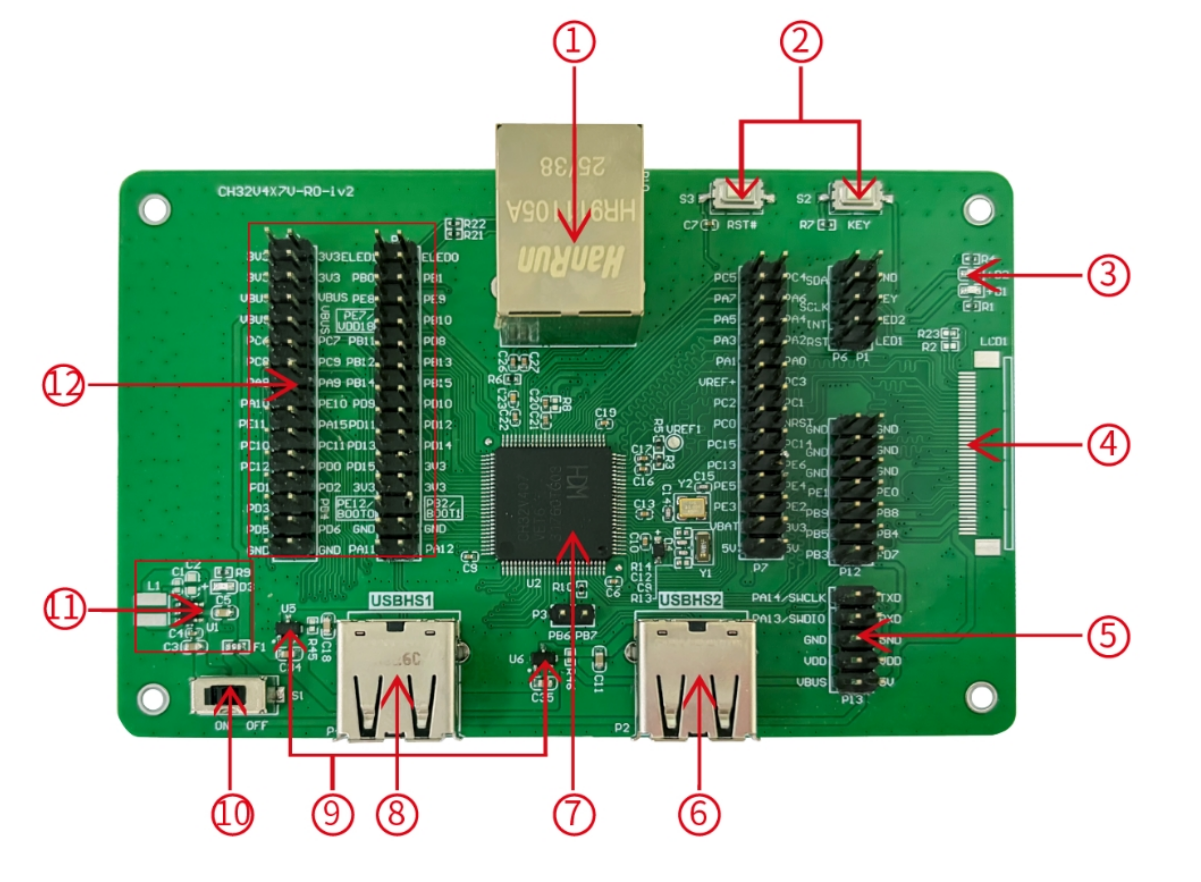

Hardware
- Network port - The main chip's network communication interface
- USER button and reset button - Connect to the main MCU's I/O ports for button control and external manual reset
of the main MCU - LED - Controlled via pins connected to the main MCU's I/O ports
- LCD interface - Used for expanding the display screen
- SWD interface - Used for download and debugging
- USBHS2 interface - Connects to the main chip's USBHS2 communication port
- Main control MCU - The main controller chip is CH32V407VET6 or CH32V467VET6 with 8MB PSRAM
- USBHS1 interface - Connects to the main chip's USBHS1 communication port
- Low voltage drop ideal diode - used for upstream USB power providing over-current and short-circuit
protection.CH213 is a low-dropout ideal diode chip with current limiting capability - Power switch - Used to disconnect or connect external 5V power supply or USB power supply
- DCDC circuit - The buck converter chip is CH2003V, used to convert 5V voltage to 3.3V voltage usable by the
chip - IO port - I/O pin-out interface of the main MCU
User Guide
Examples
Buy it Now
Resources
Documents
- WCH CH32V4x7 Datasheet
- WCH CH32V4x7 SDK
- WCH CH32V4x7 EVB Schematic
Codes
TBD
3D Drawing
TBD
FAQ
TBD
